Comprehensive Guide to Knife Gate Valve

Pros, Cons, and Functionality for Industrial Use

Introduction

Knife gate valves are essential components in many industrial settings. Their ability to easily manage thick media or viscous liquids make these valves indispensable components in industries including pulp and paper production, wastewater treatment and mining. This article delves deeper into their features, benefits and functionality for engineers, industrial professionals and mechanical students alike.

Table of content

• Overview of Knife Gate Valves

• Working Mechanism of Knife Gate Valve

• Pros of Using Knife Gate Valves

• Cons of Using Knife Gate Valves

• Disadvantages and Limitations Compared to Gate Valve

• Common Problems Faced with Gate Valves

• Conclusion

Overview of Knife Gate Valves

Definition and Primary Functions

Knife gate valves isolate flow using a blade designed to cut through thick liquids. Knife gate valves do not utilize wedges as traditional gate valves do to block their flow; these valves can therefore be used to throttle fluids or solids.

Construction Material

Construction materials play a significant role in durability and performance of knife gate valves. When selecting construction materials for these devices, corrosion-resistant materials like stainless steel or iron tend to be preferred depending on their application such as fluid type or operating conditions; in corrosive environments however, stainless steel knives gate valves may be preferred due to their durability and resistance against rust.

Importance in Industrial Fluid Control Systems

Knife-gate valves are integral components of fluid control systems for industrial applications. Their reliability in controlling flow and isolating fluids make them indispensable in working environments where high-density liquids or slurries must be handled safely and efficiently. Knife-gates ensure safety and efficiency by reliably controlling fluid movement while isolating fluids.

Working Mechanism of Knife Gate Valve

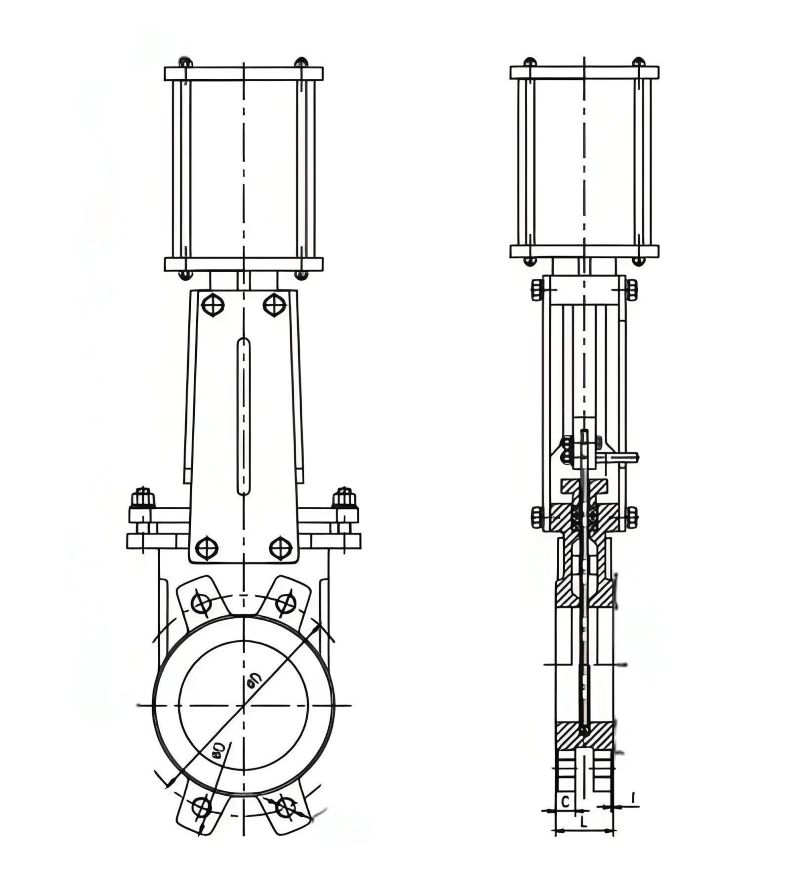

Detailed Explanation of Operation

Knife gate valves work by raising or lowering their gates to begin or stop fluid flow. Lowering them slices through media when it cuts through it and blocks passageway effectively. Their design provides minimal fluid resistance when closed tightly preventing leakage from occurring.

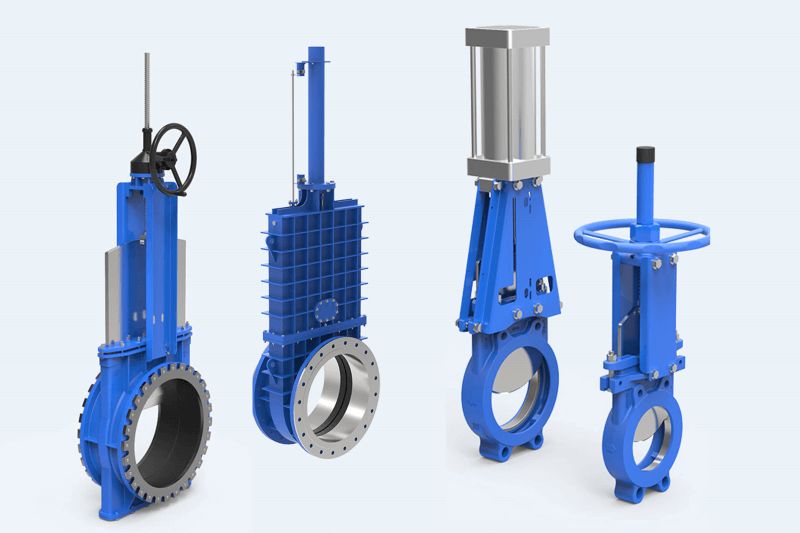

Comparison Between Manual and Automated Systems

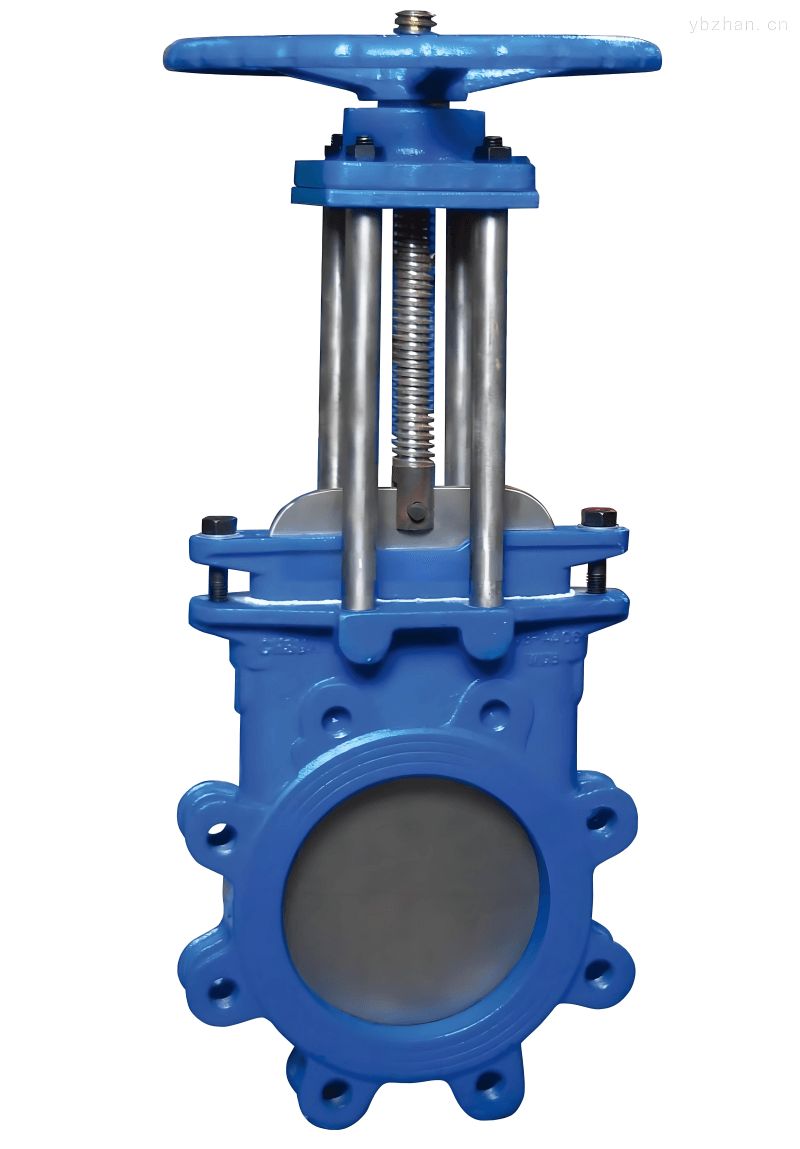

Manual knife gate valves can be operated using levers or handwheels, making them suitable for applications where automation isn't cost-effective or required. Automated knives gate valves use actuators for remote control of their operation - providing greater efficiency and convenience for larger industrial settings.

Benefits of Design Feature

Knife gate valves are engineered with features to enhance their performance, such as their robust construction and sharp-edged gates. To use them effectively, a circular blade or disc with sharp edges slides in and out of a seat to control or restrict material flow; once open they allow substances to pass freely through while once closed they form an effective seal against it to stop more material from flowing through.

Pros of Using Knife Gate Valves

High Flow Capacity and Minimal Pressure Drop

The high flow rate of knife gate vales is one of their major advantages. Straight-through designs minimize pressure drop across valves, ensuring fluid transfer and minimal energy loss.

Versatility Across Applications

Knife-gate valves are extremely versatile and can handle a variety of media including slurries powders and fibrous materials. They are suitable for a wide range of industries, including mining and food processing.

Cost-Effectiveness and Low Maintenance

Comparatively, these valves are more cost-effective than other types of valves. The simple design and durable construction of these valves reduce maintenance costs and downtime.

Cons of Using Knife Gate Valves

Limitations in Abrasive Environment

Knife gate valves can be worn out in extreme abrasive conditions. In such conditions, frequent operation may require more frequent maintenance or replacement.

Vulnerability to Wear and Tear

Knife gate valves that are frequently opened and closed can wear out, particularly the sealing surfaces. This can lead to a decrease in the performance of the valve and even leakage.

Challenges with Sealing Mechanisms

The sealing mechanisms of knife gate valves are a potential vulnerability. They may leak if not maintained properly, especially in high-pressure and high-temperature applications.

Disadvantages and Limitations Compared to Gate Valve

Contrast Between Traditional Gate Valves and Knife Gate Valves

Both traditional gate valves as well as knife gate valves have their own advantages and disadvantages. Gate valves are best suited to clean media or high-pressure applications. Knife gate valves, on the other hand, excel at handling slurries or solids.

Exploring Limitations Under different pressure environments

The gate of the knife-gate valve has a design that is particularly suited to low pressure conditions. A knife gate valve's gate is thin and can be used to cut through viscous or thick media. However, it cannot withstand high pressure. The thin gate of a knife-gate valve can be damaged or deformed when exposed to high levels of pressure. This compromises the ability of the valve to provide a good seal and control flow. Knife gate valves are ideal in applications that require high pressure resistance, such as wastewater treatment and pulp and paper. For high pressure conditions, it is better to use traditional gate valves.

Factors Influencing Choice

The choice between traditional gate valves or knife gate valves is based on several factors. These include the type of media, the pressure and temperature, and the maintenance requirements. Understanding these factors can help you select the best valve for your application.

Common Problems Faced with Gate Valves

Identifying Common Issue

Gate valves have earned themselves a sterling reputation of dependability, yet they may encounter challenges such as scaling, corrosion and blockages. Corrosion occurs when exposed to liquids with high corrosion levels for extended periods. Leaks may result from prolonged contact between materials exposed to these liquids and their respective environments causing leakage of corrosion-induced substances containing leakage-causing leakage of fluid from within the valve itself clogging it with scale or blocking its performance; in extreme cases the flow may become restricted requiring maintenance for smooth functioning.

Troubleshooting Strategies

Troubleshooting strategies must be employed in order to properly address gate valve problems. By identifying early signs of corrosion and applying protective coatings and materials, regular inspections and maintenance can prevent corrosion from erupting further. Cleaning agents with the ability to effectively remove deposits can help alleviate scaling issues while filtering systems installed upstream will minimize blockages caused by foreign particles while guaranteeing uninterrupted flow.

Conclusion

Knife gate valves can be an invaluable asset in industrial settings. Their high flow capacities, versatility and cost effectiveness make them a popular choice; however, some limitations exist such as wear or sealing problems that must be considered when making decisions about optimal fluid control systems using them. Engineers and industrial professionals comparing knife gate vales against traditional gate vales can more efficiently determine which would provide more benefits overall when optimizing fluid control systems by considering both types of valves in parallel.
